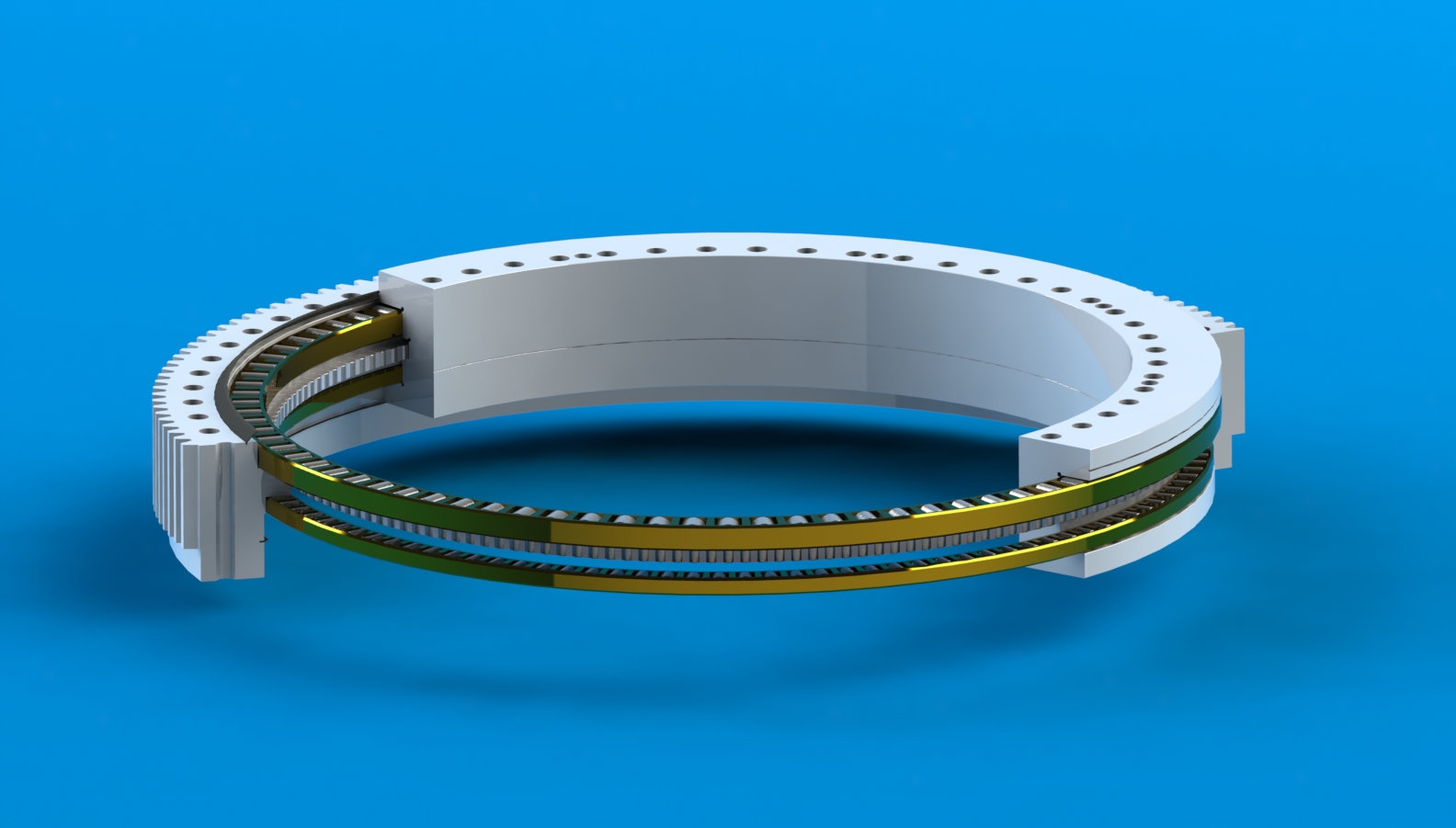

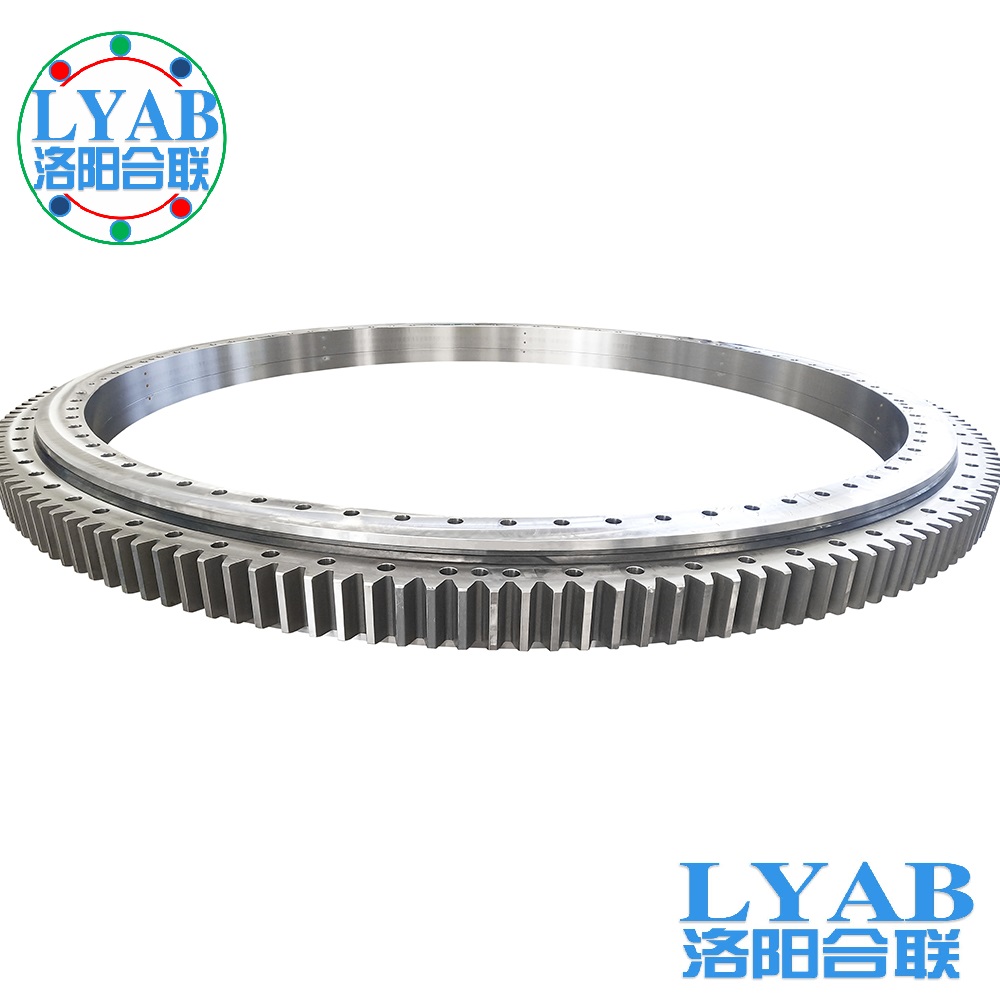

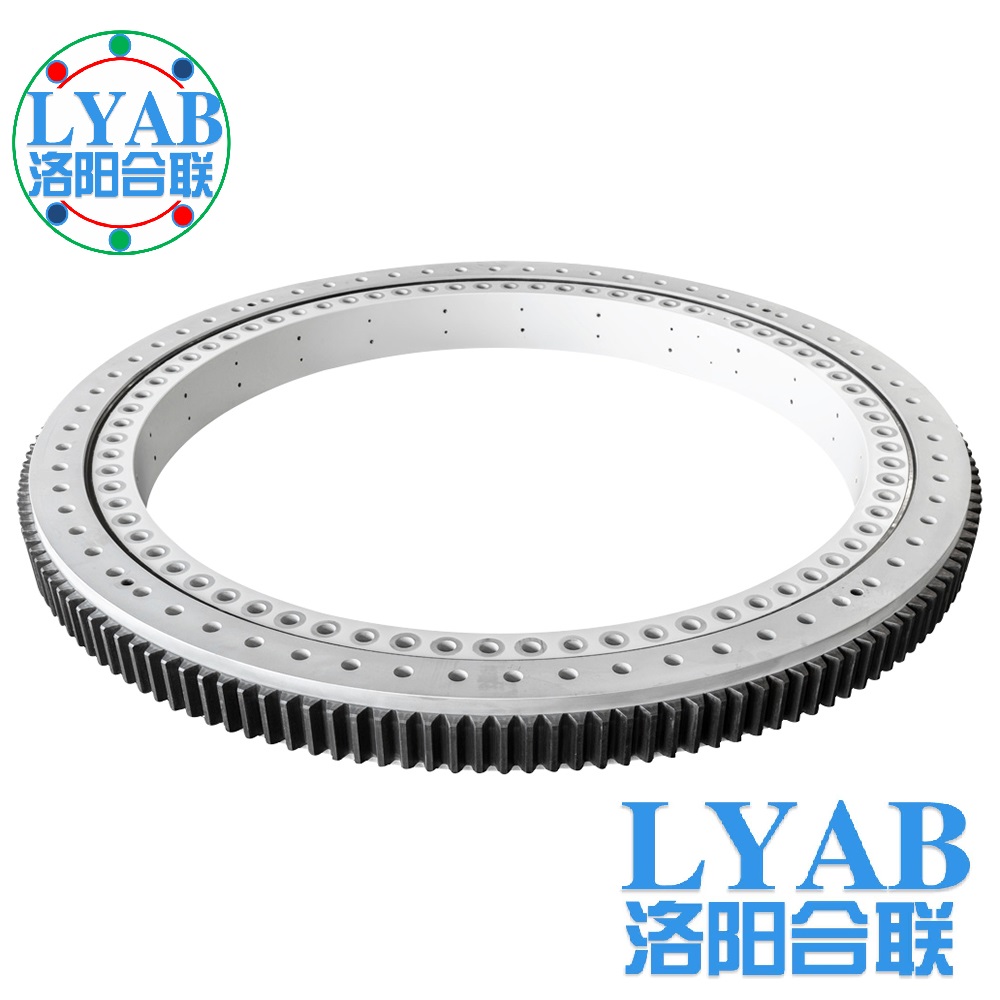

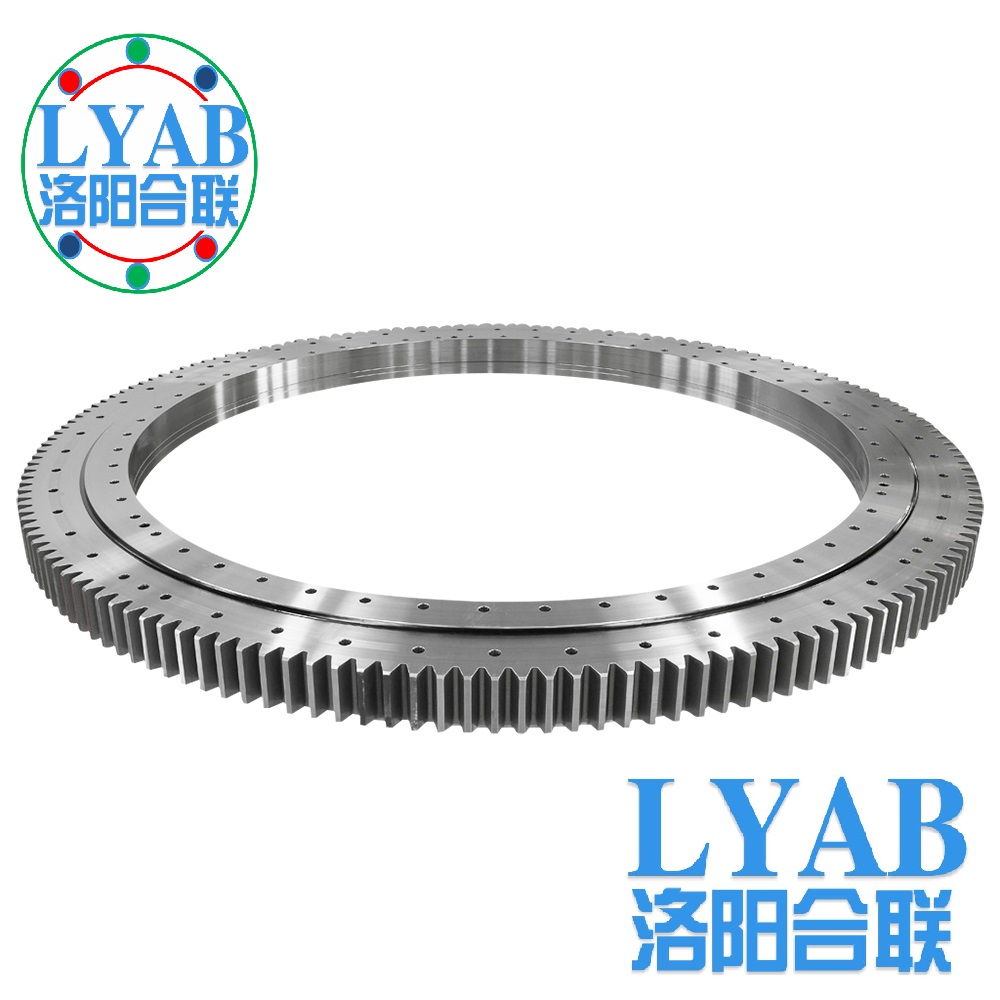

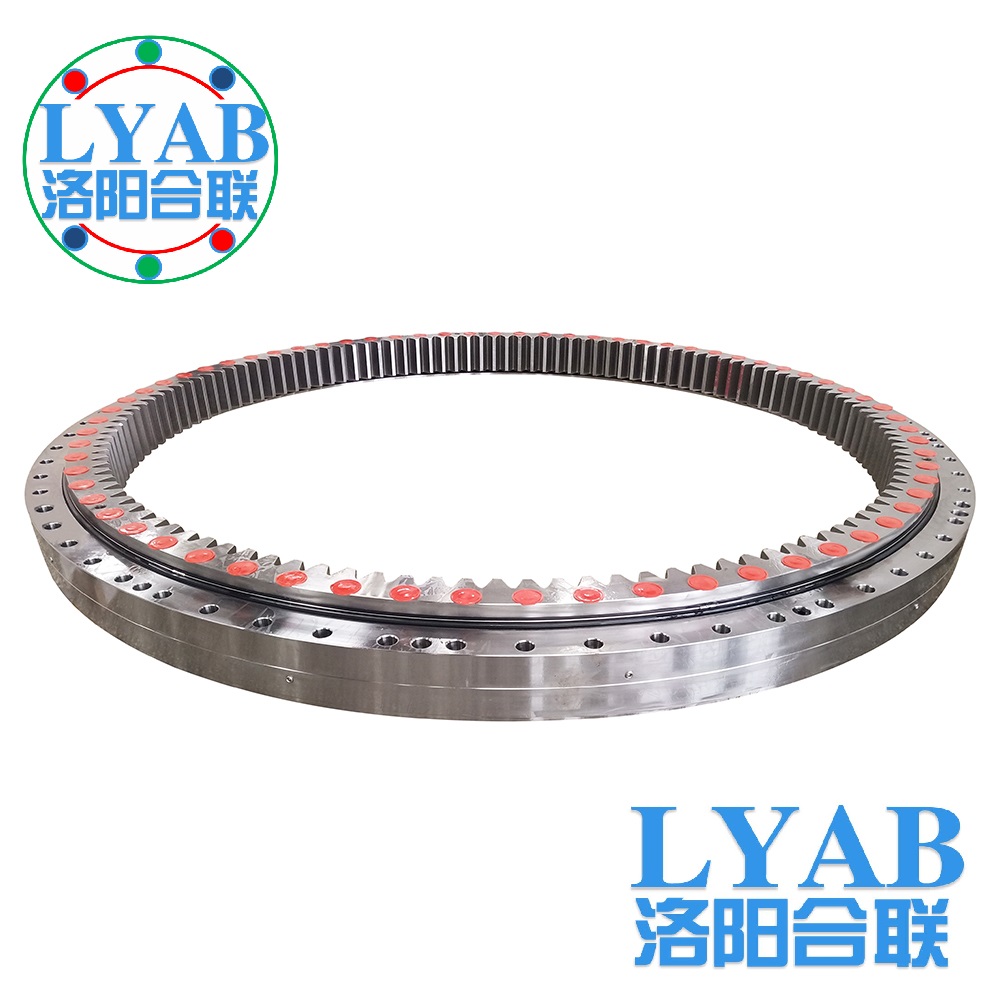

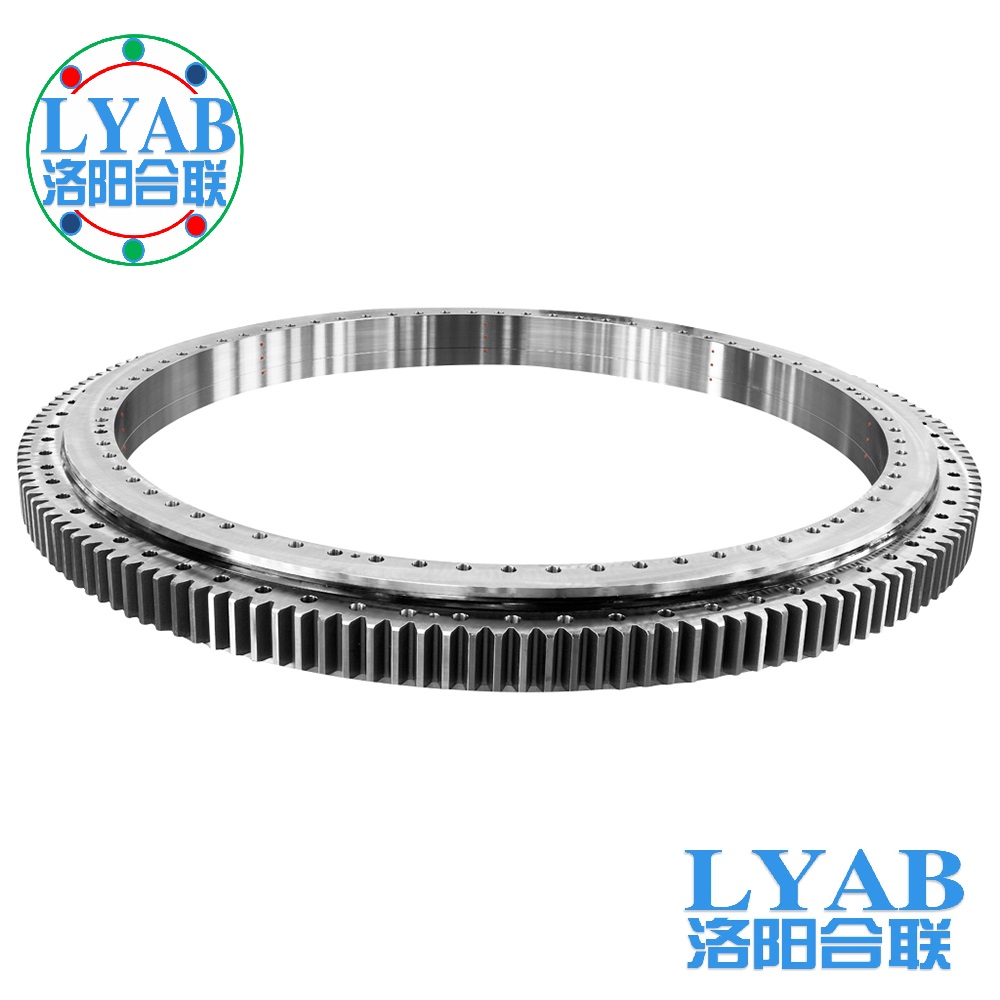

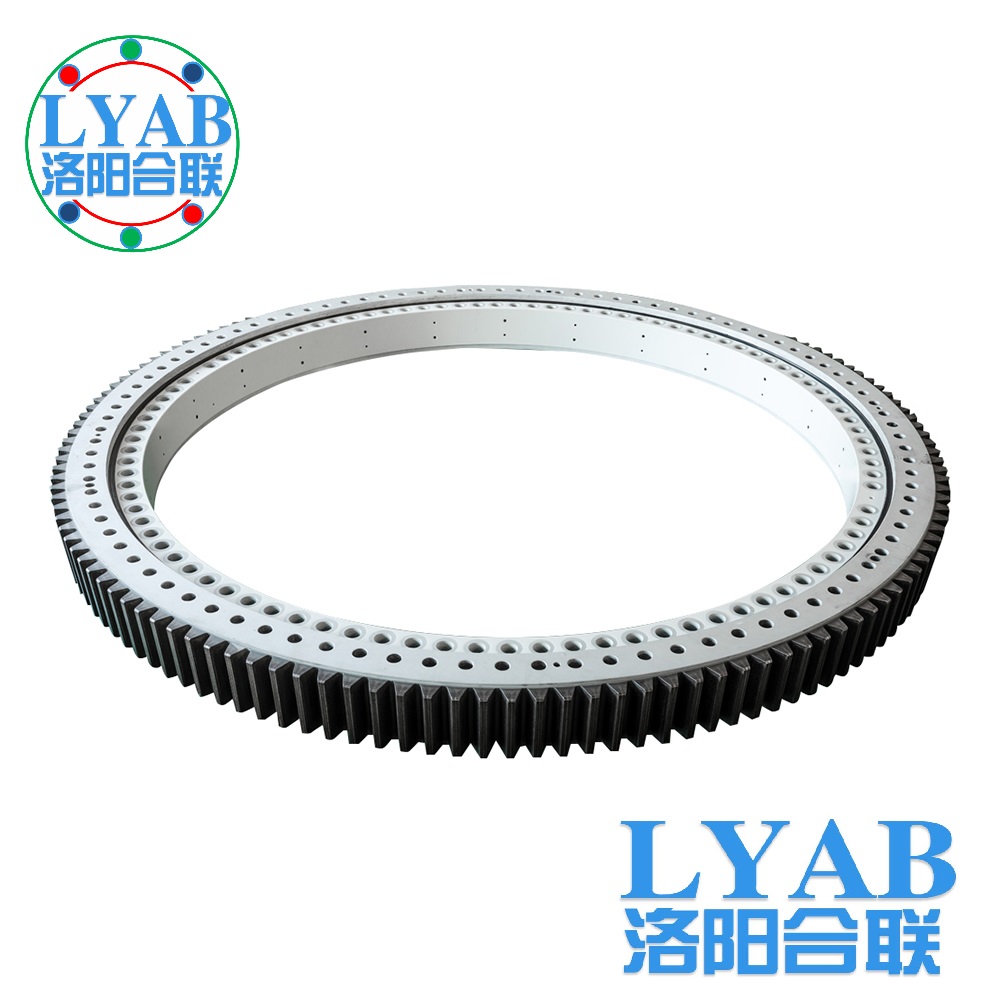

外齒三排滾子轉盤軸承
類別：三排圓柱滾子軸承
| 參數名稱 | 參數值 |
|---|---|
| 材料 | 42CrMo、50Mn、45# |
| 調質硬度 | 170HB~340HB |
| 精度等級 | P0、P6、P5、P4 |
| 保持架材料 | 尼龍、黃銅、鋼板 |
| 品牌 | LYAB |
| 齒參數 | 內齒、外齒、無齒 |
| 密封 | 丁晴橡膠、氟橡膠 |
| 認證 | CCS、ABS、BV、DNV船級社認證 |
咨詢熱線：185-3836-8720
外齒三排滾子轉盤軸承
類別：三排圓柱滾子軸承
| 參數名稱 | 參數值 |
|---|---|
| 材料 | 42CrMo、50Mn、45# |
| 調質硬度 | 170HB~340HB |
| 精度等級 | P0、P6、P5、P4 |
| 保持架材料 | 尼龍、黃銅、鋼板 |
| 品牌 | LYAB |
| 齒參數 | 內齒、外齒、無齒 |
| 密封 | 丁晴橡膠、氟橡膠 |
| 認證 | CCS、ABS、BV、DNV船級社認證 |
咨詢熱線：185-3836-8720

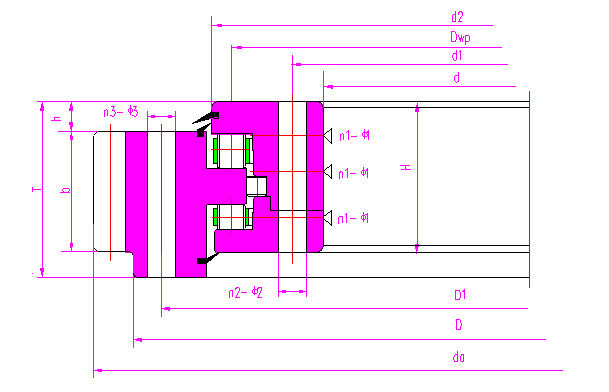

| 外形尺寸 | 軸承型號 | ||
| d | D | ||
| 426 | 694 | 89 | 131.16.554.03/P5 |
| 426 | 694 | 110 | 131.18.560.03K/P5 |
| 576 | 844 | 148 | 131.25.710.12 |
| 576 | 844 | 148 | 132.25.710.12 |
| 620 | 904 | 130 | 131.20.765.03/P5 |
| 636 | 964 | 182 | 132.32.800.03 |
| 1028 | 1404 | 132 | 131.20.1250.03 |
| 1405 | 1795 | 180 | 131.30.1610.03 |
| 1435 | 1760 | 160 | 131.30.1600.03 |
| 1453 | — | 132 | 6397/1453 |
| 1453 | 132 | 6397/1453K | |
| 1460 | 1733 | 110 | 6397/1460 |
| 1545 | 1860 | 165 | 6397/1545G2 |
| 1545 | 1860 | 160 | 132.30.1700.03 |
| 1600 | 1920 | 160 | 6397/1600G2 |
| 1600 | 1920 | 160 | 132.30.1760.03 |
| 1600 | 1995 | 250 | E6397/1600 |
| 1601 | 1985 | 168 | 131.25.1784.03 |
| 1605 | 1984 | 250 | 6397/1605G2K |
| 1605 | 1995 | 220 | 132.40.1800.03 |
| 1614 | 2004 | 154 | 131.28.1820.03 |
| 1620 | 1916 | 138 | 131.22.1770.03 |
| 1745 | 2178 | 220 | 132.40.1950.03 |
| 1745 | 2178 | 220 | 132.40.1950.03 |
| 1779 | 2221 | 231 | 131.45.2000.04 |
| 1779 | 2213 | 231 | 132.45.2000.03K |
| 1779 | 2221 | 231 | 131.45.2000.03K |
| 1800 | 2207 | 181 | 131.32.2000.03 |
| 1816 | 2195 | 150 | 132.25.2000.03 |
| 1816 | 2195 | 150 | 132.32.2000.03 |
| 1850 | 2465 | 256 | 3-947G |
| 1855 | 2405 | 175 | 132.35.2100.03 |
| 1975 | 2483 | 231 | 131.45.2196.03 |
| 1990 | 2500 | 241 | 6397/1990 |
| 2001 | 2350 | 184 | 6397/2001 |
| 2019 | 2461 | 231 | 132.45.2240.03 |
| 2019 | 2461 | 231 | 131.45.2240.03K |
| 2019 | 2461 | 231 | 132.45.2240.03K1 |
| 2050 | 2466 | 159 | 131.32.2250.03K |
| 2071 | 2425 | 147 | 131.30.2250.03 |
| 2071 | 2425 | 147 | 131.30.2250.03K |
| 2213 | 2850 | 273 | 6397/2213 |
| 2221 | 2792 | 231 | 131.45.2500.03K1 |
| 2221 | 2792 | 254 | 131.45.2500.03K5/G1 |
| 2236 | 2905 | 270 | 132.50.2555.03K |
| 2236 | 2905 | 315 | 132.50.2555.03K1 |
| 2240 | 2650 | 180 | 3-934G |
| 2260 | 2740 | 228 | 131.45.2500.03K6 |
| 2279 | 2721 | 231 | 131.45.2500.03 |
| 2279 | 2721 | 231 | 131.45.2500.04 |
| 2279 | 2721 | 231 | 131.45.2500.12 |
| 2279 | 2721 | 219 | 132.45.2500.03K |
| 2282 | null | 181 | 131.32.2500.03 |
| 2316 | 2845 | 270 | 131.45.2565.03 |
| 2319 | — | 147 | 6397/2319 |
| 2325 | 2678 | 144 | 132.20.2500.03 |
| 2369 | 2748 | 179 | 6397/2369 |
| 2421 | 2883 | 191 | 132.36.2650.03 |
| 2540 | null | 245 | 132.45.2794.03 |
| 2540 | 2887 | 294 | 6397/2240 |
| 2560 | 3112 | 280 | 134.50.2850.03/G1 |
| 2562 | — | 220 | 131.40.2800.03 |
| 2562 | — | 220 | 131.40.2800.11 |
| 2562 | null | 220 | 131.40.2800.03K2/G1 |
| 2562 | null | 220 | 131.40.2800.12 |
| 2572 | 3023 | 220 | 131.40.2780.03 |
| 2572 | 3023 | 220 | 131.40.2780.03K |
| 2579 | 3021 | 231 | 131.45.2800.03 |
| 2579 | 3021 | 231 | 131.45.2800.03K |
| 2579 | 3021 | 231 | 131.45.2800.11 |
| 2579 | 3021 | 231 | 131.45.2800.12 |
| 2579 | 3021 | 231 | 131.45.2800.12K |
| 2579 | 3021 | 231 | 132.45.2800.03 |
| 2579 | 3021 | 231 | 132.45.2800.12 |
| 2579 | 3021 | 231 | 131.45.2800.03K1 |
| 2581 | 3021 | 231 | 132.45.2800.03K |
| 2581 | 3021 | 231 | 132.45.2800.03K6 |
| 2583 | 3012 | 312 | 131.30.2815.03 |
| 2585 | 3015 | 190 | 6397/2585 |
| 2585 | 3015 | 190 | 6397/2585K |
| 2585 | 3015 | 220 | 131.40.2800.03K |
| 2585 | 3015 | 220 | 131.40.2800.03K1 |
| 2590 | 3006 | 200 | 6397/2590 |
| 2590 | 3006 | 314 | 6397/2590K |
| 2596 | 3207 | 229 | 131.36.2876.03 |
| 2599 | 3376 | 350 | 6397/2599K1 |
| 2632 | 3271 | 317 | 131.50.2935.03 |
| 2632 | 3285 | 320 | 131.50.2946.03 |
| 2669 | 3360 | 403 | 6397/2669K |
| 2800 | 3260 | 220 | 6397/2800 |
| 2868 | 3432 | 270 | 131.50.3150.03 |
| 2868 | 3432 | 270 | 131.50.3150.03K |
| 2868 | 3432 | 270 | 132.50.3150.03 |
| 2868 | 3432 | 270 | 132.50.3150.03K |
| 2868 | — | 270 | 132.50.3150.03K1 |
| 2868 | 3432 | 270 | 132.50.3150.03K2 |
| 2868 | 3432 | 270 | 132.50.3150.04 |
| 2868 | 3432 | 270 | 131.50.3150.03K11/G1 |
| 2868 | 3432 | 270 | 131.50.3150.03K14 |
| 2885 | 3400 | 229 | 6397/2885 |
| 2885 | 3400 | 229 | 131.40.3145.03 |
| 2885 | 3400 | 229 | 131.40.3145.03K |
| 2885 | 3400 | 229 | 131.40.3145.03K1 |
| 2910 | 3400 | 220 | 6392/2910G |
| 2922 | 3376 | 182 | 131.30.3150.03 |
| 2922 | 3376 | 182 | 131.30.3150.12K |
| 2922 | 3376 | 182 | 131.30.3150.03K |
| 2930 | 3390 | 216 | 131.38.3161.03 |
| 2930 | 3390 | 233 | 131.45.3161.03 |
| 2932 | 181 | 131.32.3150.03 | |
| 3038 | 300 | 6397/3038 | |
| 3185 | 3958 | 285 | 132.50.3540.03K |
| 3268 | 3832 | 270 | 132.50.3550.03K21/G1 |
| 3292 | — | 229 | 6397/3292 |
| 3312 | 220 | 131.40.3550.03 | |
| 3312 | 220 | 132.40.3550.03K | |
| 3322 | 3766 | 189 | 132.34.3550.03 |
| 3332 | null | 181 | 131.32.3540.03G1 |
| 3332 | 181 | 131.32.3550.03 | |
| 3334 | 3747 | 220 | 132.36.3510.03 |
| 3340 | — | 212 | 6397/3340 |
| 3340 | 3815 | 270 | 131.50.3596.03 |
| 3340 | 3815 | 270 | 131.50.3596.03K |
| 3340 | — | 212 | 132.40.3582.03 |
| 3340 | — | 212 | 132.40.3582.04 |
| 3340 | null | 212 | 132.40.3582.03K4 |
| 3340 | null | 212 | 132.40.3582.03K5 |
| 3340 | 3818 | 222 | 132.45.3582.03 |
| 3340 | 3858 | 270 | 191.50.3586.000.41.1521 |
| 3340 | null | 217 | 132.40.3588.03 |
| 3370 | null | 192 | 131.36.3590.03K |
| 3378 | 177 | 6397/3378 | |
| 3414 | 3850 | 205 | 132.32.3624.03 |
| 3415 | 3982 | 270 | 6397/3415G2 |
| 3415 | 3982 | 270 | 131.50.3700.03 |
| 3415 | 3982 | 270 | 6397/3415 |
| 3415 | 3982 | 270 | 6397/3415K |
| 3508 | 3918 | 250 | 132.40.3730.03 |
| 3508 | null | 230 | 132.45.3730.03 |
| 3565 | 4132 | 270 | 131.50.3840.03 |
| 3574 | 3967 | 166 | 131.25.3753.03 |
| 3615 | — | 222 | 6397/3615 |
| 3616 | — | 222 | 6397/3616 |
| 3616 | 4132 | 222 | 6397/3616K |
| 3616 | 4132 | 222 | 6397/3616K1 |
| 3630 | — | 230 | 6397/3630 |
| 3630 | 230 | 6397/3630 | |
| 3650 | — | 222 | 6397/3650K |
| 3650 | 4173 | 222 | 6397/3650K1 |
| 3714 | 4150 | 213 | 132.40.3930.03 |
| 3714 | 4178 | 270 | 131.40.3940.03 |
| 3715 | 4282 | 270 | 131.50.4000.03K2 |
| 3718 | — | 270 | 132.50.4000.03K2 |
| 3718 | 4282 | 270 | 132.50.4000.03K3 |
| 3718 | 4282 | 270 | 132.50.4000.04 |
| 3718 | 4282 | 270 | 132.50.4000.12 |
| 3718 | 4292 | 316 | 131.45.4000.03 |
| 3718 | 4282 | 270 | 131.50.4000.03K4 |
| 3762 | 4046 | 258 | 131.50.4000.03K1 |
| 3762 | — | 220 | 132.40.4000.03 |
| 3762 | 4363.2 | 220 | 131.40.4000.03K2 |
| 3780 | — | 192 | 6397/3780 |
| 3780 | 192 | 6397/3780K | |
| 3782 | 4351.6 | 181 | 131.32.4000.03 |
| 3782 | 4351.6 | 181 | 132.32.4000.03 |
| 3784.6 | 4390 | 265 | 132.45.4090.03 |
| 3784.6 | 4385 | 265 | 132.45.4090.03K |
| 3793 | 4244 | 200 | 131.32.3990.03/G1 |
| 3793 | 198 | 6397/3793 | |
| 3793 | 198 | 6397/3793K | |
| 3825 | 4580 | 420 | 132.70.4280.03/G1 |
| 3870 | 4423 | 240 | 6397/3870 |
| 3925 | 4418 | 222 | 6397/3925 |
| 3930 | null | 222 | 131.40.4200.03 |
| 3930 | null | 222 | 131.40.4200.03K |
| 3970 | null | 187 | 132.36.4156.03 |
| 4016 | 4613 | 307 | 6397/4016 |
| 4100 | 4535 | 268 | 6397/4100 |
| 4138 | null | 315 | 132.50.4438.03K |
| 4138 | null | 315 | 132.50.4438.004.04.03F2 |
| 4140 | — | 315 | 132.50.4438.03 |
| 4218 | 4782 | 270 | 131.50.4500.03 |
| 4218 | 4782 | 270 | 131.50.4500.04 |
| 4218 | 4782 | 270 | 132.50.4500.03K20 |
| 4218 | 4782 | 270 | 131.50.4487.03 |
| 4220 | 4782 | 270 | 131.50.4500.03K3 |
| 4246 | — | 233 | 6397/4246 |
| 4246 | — | 233 | 6397/4246K |
| 4246 | null | 265 | 6397/4246K1 |
| 4246 | null | 220 | 131.40.4500.03 |
| 4262 | — | 220 | 131.40.4500.03 |
| 4375 | 4900 | 275 | 6397/4375 |
| 4440 | — | 235 | 6397/4440 |
| 4635 | 5360 | 390 | 132.70.5000.03 |
| 4670 | 5320 | 320 | 131.60.5000.04 |
| 4740 | 5295 | 256 | 132.45.5012.03 |
| 4747 | 5309 | 268 | 6397/4747 |
| 4747 | 5309 | 268 | 131.50.5000.03K |
| 4760 | 5370 | 320 | 132.54.5054.03 |
| 4830 | 5480 | 336 | 6397/4830 |
| 4914 | 5381 | 261 | 6397/4914 |
| 5218 | 5782 | 270 | 132.50.5500.03 |
| 5230 | 5940 | 385 | 131.80.5560.03/G1 |
| 5335 | 268 | 132.50.5600.03 | |
| 5335 | 5915 | 344 | 132.50.5600.03K1/G1 |
| 6130 | 320 | 131.50.6400.03 | |
| 6980 | null | 270 | 6397/6980 |
| 7800 | 8400 | 295 | 6397/7800D |
用戶客戶根據設備使用情況，選擇合適結構的轉盤軸承（齒圈）。

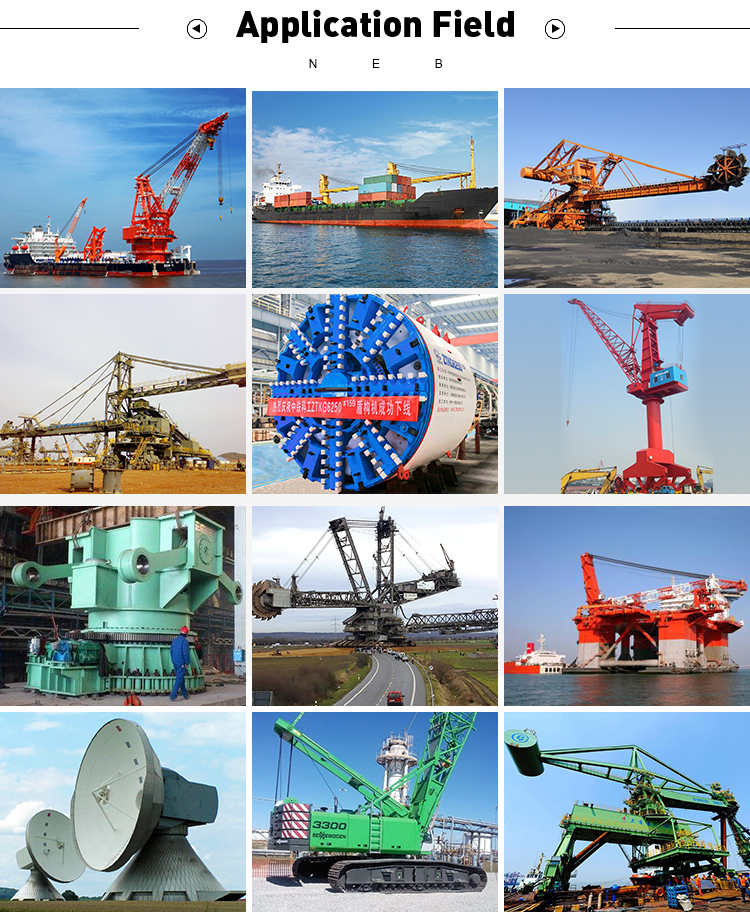

三排圓柱滾子軸承一般應用在以下設備（領域）：
1、斗輪機（堆取料機），常見于煤炭、礦上、港口等設備上；
2、盾構機主軸承，常見于隧道、地鐵工程設備上；
3、港口起重機；
4、船用起重機；
